Common Citrix Pitfalls You Should Be Aware Of

AAs a freelancer, I often come across Citrix „pitfalls“ that clients tend to fall into. Since I've seen them so often, I can resolve them quickly—much to the surprise of the administrator in charge. For example, the client wasted nearly two days on issue #7, but I fixed it in just a few minutes.

Here is a list of common Citrix pitfalls:

1. After setting up StoreFront, no one can log in. The StoreFront Delivery Controllers are configured and everything looks fine.

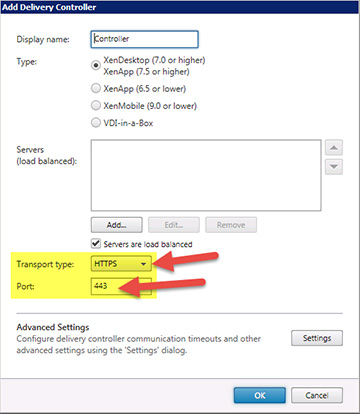

   Common mistake: By default, StoreFront Delivery Controllers are set to HTTPS and TCP Port 443 and HTTP and port 80 aren't set! But XenDesktop Delivery Controller or XenApp use HTTPS/443 is not the default and therefore do not respond to any inquiries.
   Quickly resolved: In the Delivery Controller settings, set the type to HTTP and the port to TCP 80.
   Best option: Especially if StoreFront is also running on the Delivery Controller, enable SSL/443 using a private or public certificate.



2. Occasional issues launching applications via Netscaler Gateway using StoreFront or the web interface.
   Common mistake: The Secure Ticket Authority (STA) servers are not the same in NetScaler Gateway and StoreFront/Web Interface
   Quickly resolved: Using the EXACTLY the same STA server in Gateway and San Francisco/Wisconsin
   Note: I recommend using the FQDN for STA servers and not changing the default port 80 for the XML service.
3. After authenticating at the Netscaler Gateway, the familiar StoreFront error message appears: „The request cannot be completed„I went through the excellent Citrix article CTX207162, but nothing changed.”.

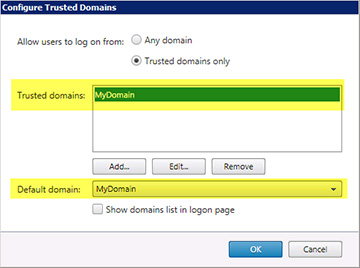

   Common mistake: In StoreFront, the Trusted Domains e.g., with MyDomain.com set so that users only need to enter their login name. However, in the Netscaler Gateway session profile, the Single Sign-On (SSO) domain was set to MyDomain has been set, and therefore the SSO request cannot be completed because it is being rejected.
   Quickly resolved: Adding MyDomain or changing the trusted domains in StoreFront to MyDomain.com
   Note: Check the Citrix Delivery Services event log under Application and Service Logs



4. Using the NetScaler VPX to load balance backend SSL systems such as Outlook Web Access without SSL offload. The load balancer is shown as offline.
   Common mistake: Virtual Netscaler Appliances (VPX) only support up to 2048-bit key size on backend systems, and if the value is higher, an error occurs!
   Quickly resolved: Switching to SSL offload can be quite easy with some backend systems.
   Best option: Change the backend certificate to use a key size of only 2048 bits to maintain encryption security.
   Note: Check the Netscaler Monitor; it should display a message indicating a synchronization issue.
5. You notice that the Netscaler (gateway) time is no longer synchronized, which is causing some issues. The NTP server has been configured.
   Common mistake: NTP synchronization is not enabled. After the NTP server has been configured MUST synchronization can still be enabled
   Quickly resolved: Under "NTP Service Actions," enable synchronization
   Note: If the time is still not synchronized, use the Netscaler CLI to verify that the NTP daemon has actually started.
   Link: Read more about this topic The Importance of Time in a Netscaler HA Setup
6. When using the XenMobile Wizard in Citrix NetScaler, select SSL offloading to the XenMobile Server. Once it's finished, nothing works.
   Common mistake: SSL offload is enabled by default NOT active on the XenMobile Server and the wizard does not indicate
   Quickly resolved: Enable SSL offload in the XenMobile Server CLI
   Best option: Use SSL for XenMobile
   Note: For greater security, you should use SSL; this is why Citrix has disabled SSL offload by default.
7. Are you having trouble finding the correct VMware vCenter root certificate to get XenDesktop hosting to work?
   Common mistake: Didn't look closely enough 😉
   Quickly resolved: On the vCenter login page, you will find the root certificate on the right-hand side. After downloading it, rename it to ZIP. Unzip the file and rename the "01" file to "cer." This is the required root certificate.
   Note: Check the certificate for the FQDN; newer versions usually also include the server FQDN.
8. You are using SecureHub to start HDX sessions, but you can't find the HDX settings for display, etc.
   Common mistake: Even if you don't configure the receiver (required for HDX) using SecureHub, you still need to create an account in the receiver to access the HDX settings!
   Quickly resolved: As far as I know, there's no other option here besides creating an account.
   Note: Not really a pitfall, but rather something Citrix has overlooked for years now.
9. Single Sign-On isn't working
   Common mistake: XML Trust has not been enabled
   Quickly resolved: With XenDesktop 7.x, the trust must be enabled via PowerShell
   Note: Up until XenApp 6.5, the trust could be easily enabled in the console.
   PoSh: Set-BrokerSite -TrustRequestsSentToTheXmlServicePort $true
10. Launching multiple sessions using the same Active Directory user account
    Common mistake: Multi-session mode must first be enabled
    Quickly resolved: With XenDesktop 7.x, this must be enabled via PowerShell, just as with Trust
    Note: Up until XenApp 6.5, this could be done easily in the console.
    PoSh: Set-BrokerEntitlementPolicyRule -SessionReconnection DisconnectedOnly
11. Launching Citrix sessions via Web Interface or StoreFront takes a long time or doesn't work at all.
    Common mistake: A proxy server is being used, and the Citrix client uses the browser settings
    Quickly resolved: In the default.ica file for strictly internal Set the proxy entry to NONE for connections.
    Note: Anyone using internal proxy servers should pay special attention to Citrix.
    CTXKB: StoreFront Client Proxy Configuration – https://support.citrix.com/article/CTX136516

Would you like to add anything? Please leave your comments below!
